How to Troubleshoot Performance with a Visual Studio Profiler

By: cherrera@fullscale.io
  |  May 2, 2023
How to Troubleshoot Performance with a Visual Studio Profiler

Performance profilers mainly aid developers in analyzing the performance of applications. The purpose is to improve poorly performing sections of code that make up the functions of the application. When you say performance profilers, common names that come to mind are Visual Studio performance profilers and Prefix by Netreo.

In this article, we will focus on the specific Visual Studio profiling tools for memory and CPU usage.

Visual Studio Performance Profiler: Memory and CPU Usage

Visual Studio (VS) is an integrated development environment (IDE) used for many software development aspects and includes a suite of profiling tools. The VS performance profiler is like a world of its own with multiple performance profiling tools for troubleshooting issues and improving application performance.

If you want to learn more about the different VS performance profiling tools, read about the Top Visual Studio Profiling Tools.

Two of the most commonly used tools within the suite are Memory Usage and CPU Usage tools, because a slow application typically results from memory and CPU issues. Though it does not apply at all times, these two are the most common culprits.

Memory Usage

Memory profiling tools are essential when profiling application performance. For the VS performance profiler, the Memory Usage tool is your go-to tool. The Memory Usage tool runs smoothly with .NET Core-managed scenarios and is best in locating memory leaks, code pathways allocating a lot of memory and many other issues.

CPU Usage

The CPU Usage tool is another staple for VS and measures two basic things. First is the percentage of CPU utilization over time or the percentage of your total CPU usage. The second is the number of times a call to action function appears on the call stack over time.

How to Troubleshoot Performance with VS Performance Profiler

Within the Visual Studio performance profiler you will find profiling tools such as CPU Usage, Database, Events Viewer, Memory Usage, dotNET Object Allocation Tracking, .NET Async, .NET Counter and GPU Usage. Let’s take a closer look at troubleshooting with our two key usage tools.

Troubleshooting Memory Usage

The Memory Usage tool runs with or without a debugger. When using the Visual Studio performance profiler, you will run without a debugger. Profiling and troubleshooting with the Memory Usage tool is recommended mostly for release builds.

Memory Usage Diagnostics

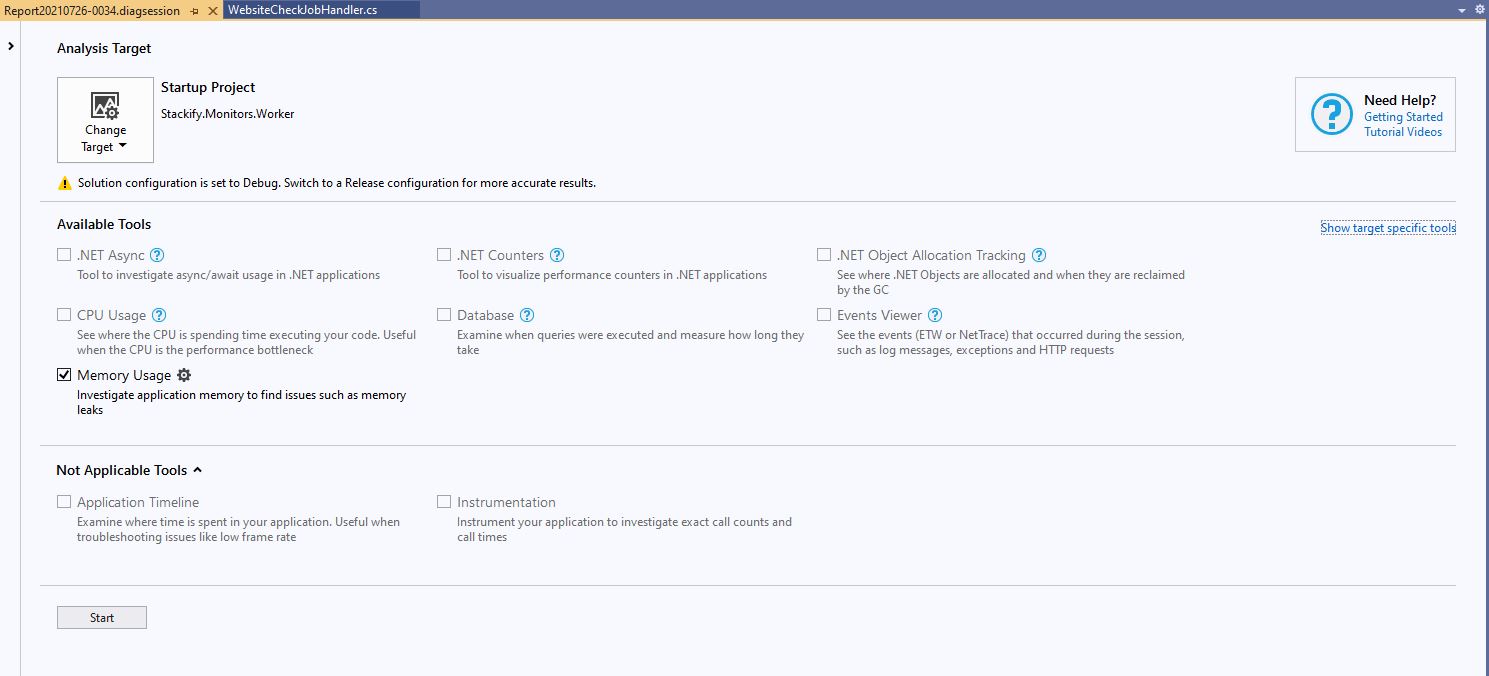

  1. Set solution to Release. Select Local Windows Debugger (Local Machine). Since Memory Usage in the VS Performance Profiler runs without a debugger, you need to switch to a Release configuration. You will see a warning sign under Analysis Target, signaling that you need to switch to Release mode
  2. Select Debug > Performance Profiler. Or you can simply click Alt + F2
  3. You will see the summary page. Under Available Tools, select Memory Usage
  4. Click Start
Visual studio performance profiler memory usage

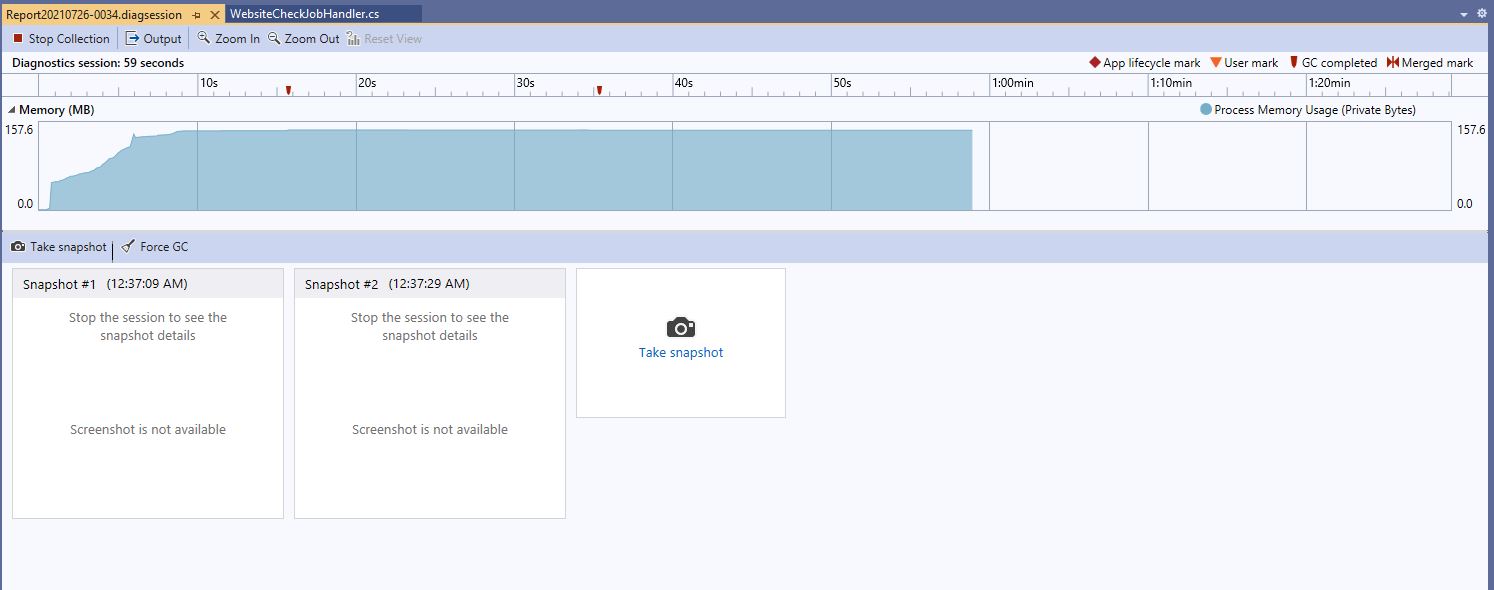

  1. The diagnostic session starts and the window displays a graph indicating your application’s memory use
  2. Take snapshots during the session to capture the memory usage for particular moments, such as large spikes. Take snapshots before a memory issue appears and another image after the occurrence of the problem. These provide concrete data for comparison to help identify the possible source of problems
  3. After collecting snapshots and appropriate data, select Stop Collection
  1. The page will display Memory Usage reports

Troubleshoot CPU Usage

There are two main actions to take when troubleshooting using the CPU Usage tool: data collecting and analyzing.

Collecting CPU Usage Data

  1. Select Debug > Performance Profiler. Or, you can simply click Alt + F2
  2. Now, you will see the summary page. Under Available Tools, select CPU Usage
  3. Click Start
Visual Studio performance profiler CPU usage
  1. The diagnostic session begins, and you will see a graph similar to what appears below. This displays the CPU usage data. Once data collection is complete, select Stop Collection at the upper left corner of the page
  1. Afterward, the CPU Usage tool analyzes the data and displays the report. The report shows bottlenecks or potential CPU issues that affect application performance

Analyzing CPU Usage report

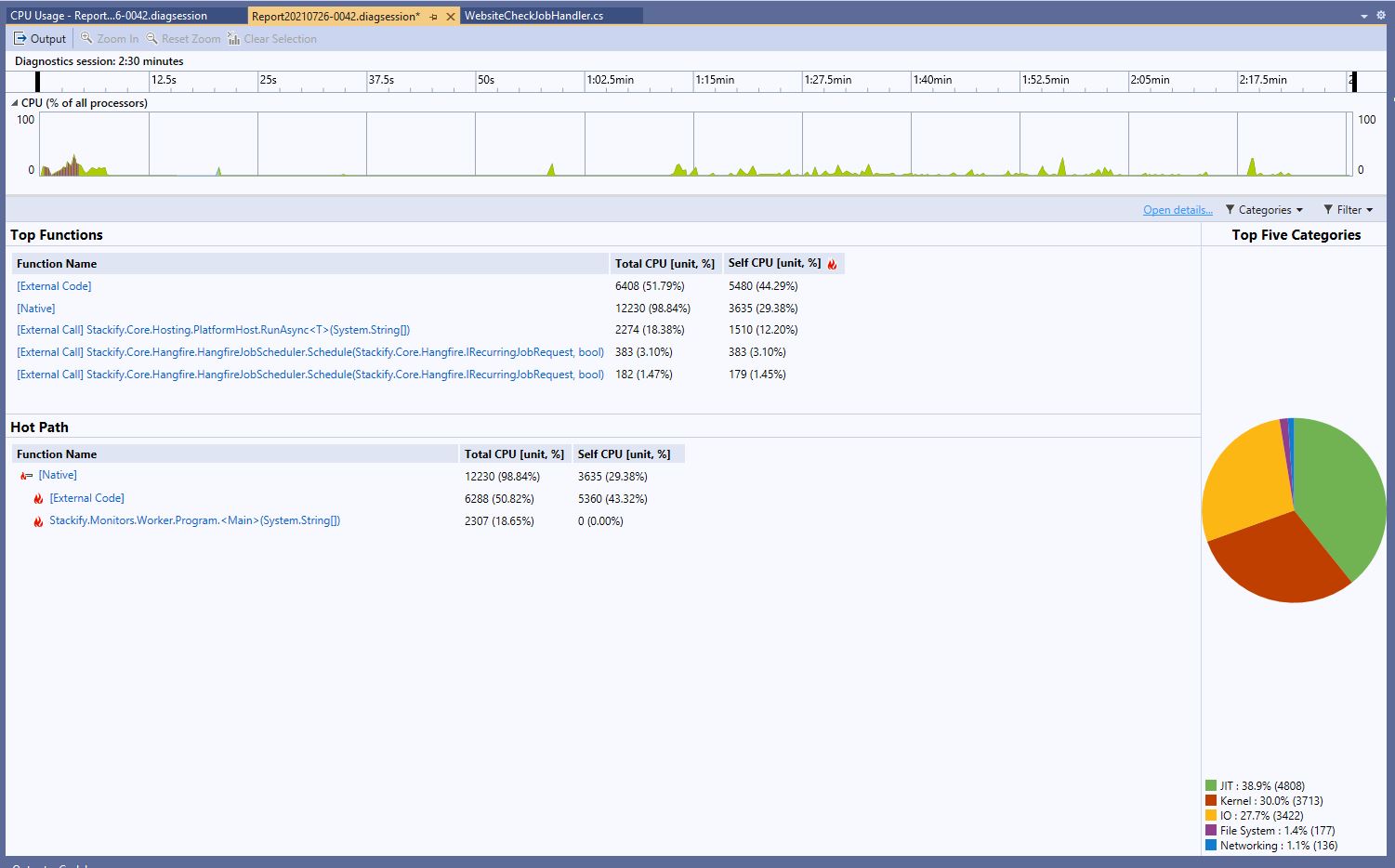

Visual Studio performance profiler CPU usage report

The above image shows the CPU Usage data report. You can see two groups: Top Functions and Hot Path. Under Top Functions are application functions that are taking up a lot of the CPU. The Hot Path shows areas of the code that also use a lot of the CPU’s resources. Through these reports, developers can pinpoint which areas should be optimized.

Call Tree Structure

When you click on one of the functions under the functions table, it displays a flat list of called functions but does not show the path of each function. To view the call tree of the report, navigate the Current View dropdown at the upper left corner of the page, select Call Tree.

Visual Studio Performance Profiler Call Tree Structure

The flat list instantly changes to the image above. When you click on a function, it shows you the path and views of what transpired during the system execution. You can see the cause of performance issues and whether they stem from the native code, external code or other scenario.

Performance Profiling with Prefix

Memory Usage and CPU Usage tools are essential for basic performance profiling. However, these are not the only tools for performance profiling. You can find more in-depth tools that will give you more granular data for troubleshooting application performance.

Besides Visual Studio tools, you can also find other reliable code profiling tools that can efficiently help you, including the developer’s most reliable sidekick, Prefix.

Prefix is one of the world’s most dynamic code analysis tools. Profiling with Prefix can help even the most experienced developers when it comes to optimizing slow SQL queries, hidden exceptions and a host of other code issues. What’s better is that it works for PHP, .NET Core, Python, Node.js, Java and Ruby.
You don’t have to face another coding nightmare because Prefix can quickly back you up. DOWNLOAD PREFIX FOR FREE TODAY!
